Standard
Availability: In Stock
BM02040311
Trinocular Biological Microscope
Warranty: 5/1 Years
Quick Overview
Finite. System Optical Magnification: 40-1500X. 10X 15X Eyepiece. 4X 10X 40X 100X Achromatic Objective. Standard Coupler: 1X. Eyetube Angle: 45°. XY Stage Travel Distance: 75x50mm. Stage Scale: X: 60-150mm Y: 0-50mm. Illumination Type: Halogen Transmitted Light. Number of Filter Kit: 1. Filter Color: Green. Filter Color: Blue. Filter Color: Yellow. CMOS. 5.0 Megapixels. USB 2.0. Windows XP/Vista/7/8/10/OSX/Linux 2.6 and above. Input Voltage: AC 110-220V 50/60Hz. BM05040311 DC29111251.
BM02040311 Trinocular Biological Microscope
Optional parts for BM02040311 Trinocular Biological Microscope
BM05043411 20X Achromatic Objective
BM05043231 4X Plan Achromatic ObjectiveApplied To: : BM0504 Series Microscope. Objective Optical System: Finite. 4X. Objective Type: Plan Achromatic Objective. Objective for Mechanical Tube Length: 160mm. Objective Screw Thread: 4/5″x1/36″. Bright Field Objective.
BM05043331 10X Plan Achromatic ObjectiveApplied To: : BM0504 Series Microscope. Objective Optical System: Finite. 10X. Objective Type: Plan Achromatic Objective. Objective for Mechanical Tube Length: 160mm. Objective Screw Thread: 4/5″x1/36″. Bright Field Objective.
BM05043431 20X Plan Achromatic ObjectiveApplied To: : BM0504 Series Microscope. Objective Optical System: Finite. 20X. Objective Type: Plan Achromatic Objective. Objective for Mechanical Tube Length: 160mm. Objective Screw Thread: 4/5″x1/36″. Bright Field Objective.
BM05043531 40X Plan Achromatic ObjectiveApplied To: : BM0504 Series Microscope. Objective Optical System: Finite. 40X. Objective Type: Plan Achromatic Objective. Objective for Mechanical Tube Length: 160mm. Objective Screw Thread: 4/5″x1/36″. Bright Field Objective.
BM05043831 100X Plan Achromatic ObjectiveApplied To: : BM0504 Series Microscope. Objective Optical System: Finite. 100X. Objective Type: Plan Achromatic Objective. Objective for Mechanical Tube Length: 160mm. Objective Screw Thread: 4/5″x1/36″. Bright Field Objective.
BM05044121 0.35X Coupler
DC29111241 3M CMOS Color Digital CameraCMOS. Image Sensor Size: 1/2″. 3.0 Megapixels. USB 2.0. 8fps. Windows XP/Vista/7/8/10/OSX/Linux 2.6 and above. C/CS Spacer: 5mm.
DC43911121 2M VGA Color Digital CameraCMOS. Image Sensor Size: 1/3″. 2.0 Megapixels. USB / VGA / AV. 15fps. Camera Crosshairs: Cross Line. 4 Movable Lines. C/CS Spacer: 5mm. Input Voltage: DC 12V.

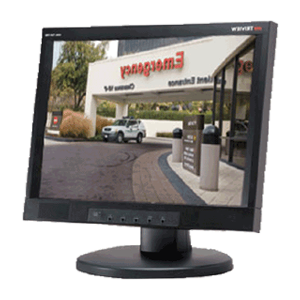

Tatung-TLM-1506T 15” LCD Color MonitorScreen Size: 15″. 4:3. Monitor Input Signal Format: VGA/Video/AUDIO/S-Video. 20W. Input Voltage: AC 110-240V 50/60Hz.



Standard Accessories
Parts Including
BM05040311 Trinocular Biological Microscope
DC29111251 5M CMOS Color Digital Camera
Desiccant Bag1 Bag
Dust Cover1pc
Cedar Oil1 Bottle
Spare Bulb1pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight8.12kg (17.90lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Total Gross Weight of Transportation(kilogram)8.12
Total Gross Weight of Transportation(pound)17.90
